Description

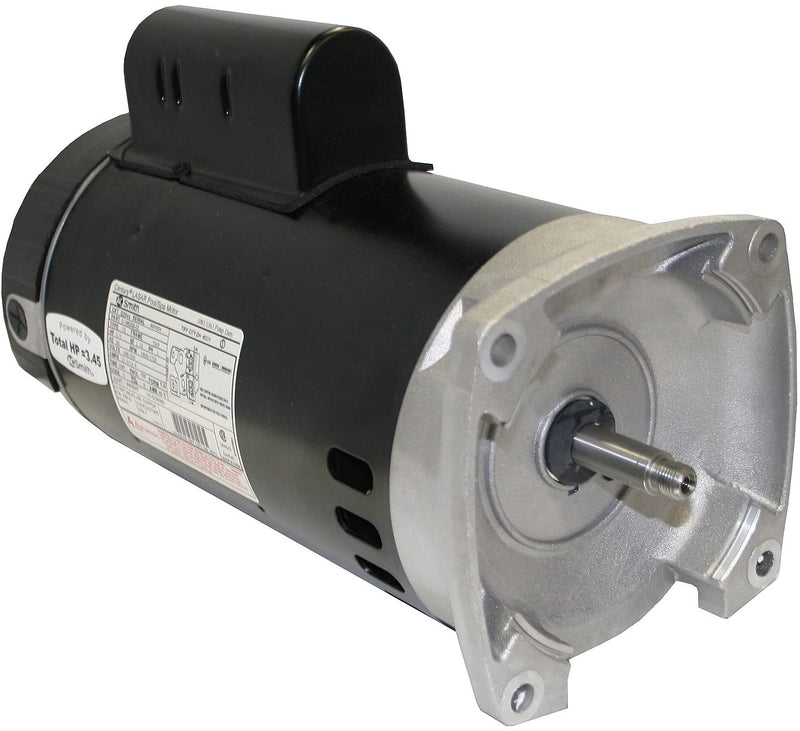

These motors are commonly used on swimming pool pumps such as the Pentair® WhisperFlo®, Challenger®, UltraFlo®, Sta-Rite® Max-E-Pro® (Max E Pro®), Dyna-Pro® (Dyna Pro®), Hayward® TriStar® (Tri Star®, Tri-Star®), Jandy® Stealth® SHPF & SHPM Series Pump (2008-Current) and other popular pumps requiring a motor with a threaded shaft and Square Flange. Not compatible with Jandy Steath Old Version JHP. These AO Smith® Electric pump motors are designed for pumps in residential inground swimming pools. They feature a double pool pump seal in the pump motor endbell to protect against pump motor damage from pool pump seal failure.
Proven Performance
A. O. Smith® patented no-adjust start switch, rated for over one million cycles for motor longevity
Centurion® electrical designs with advanced cooling system for added motor life
303 grade stainless steel shaft for added corrosion protection
Enhanced Serviceability
EZ wrench access without removal of wiring compartment canopy
EZ access angled terminal board for ease of connections
Patented New EZ voltage change dial for time savings in voltage selection
A. O. Smith® patented bonding lug for ease and integrity of ground connection
Patented bearing lock clip... an A. O. Smith exclusive for assured bearing retention
Premium Efficiency
All motors are 56 frame high efficiency capacitor run or ePlus® 2-speed for assured energy savings
Meets California Energy Commission (CEC-400-2006-002 Revl) 2006 and 2008 energy requirements
Increased Reliability
All motors are rated 115/208-230 +/-10% volts to handle voltage variations throughout the US and Canada
Double sealed bearings and, on shaft end, an integrated Patented SmithSeal® bearing protector to resist water damage
New Rugged motor enclosure system for enhanced durability and premium protection against corrosion
A full class F insulation system and 50° C ambient capability for increased motor life over class B insulation systems
Alternate Part Numbers
| 3/4 HP | SQ1072 | QC1072 / 160001 | EB847 |
| 1 HP | SQ1102 / B2848 | B2841V1 / B2848V1 / 160003 | ASB841A |
| 1 1/2 HP | SQ1152 / B2849 | B849 / 160005 | |
| 2 HP | SQ1202 / B2843 | 160007 |
