Description
Products subject to availability. Please contact us for availability questions on any listed products, as they are not guaranteed to be in stock.
Is your Pentair® Clean & Clear® Plus Filter in need of repairs? Find the replacement parts that you need to get your Pentair® Clean & Clear® Plus Cartridge Filter up and running again.
Is the part that you need on the schematic but not listed? We can help! Call us for part availability and further assistance.
Schematic Number
Schematic Number | Part Number | Part Name |
1 | SPG-06-1005 | Pressure Gauge |
2 | 98209800 | Manual Air Relief Valve & Gauge Kit |
3 | N/A : Obsolete | Air Relief Discharge Tube |
4 | 178616 | Compression Spring |
5a | 170026 | Top Manifold - CCP240 |
5b | 170027 | Top Manifold - CCP320, CCP420, CCP520 |
6a | OPT-240-4PK | Cartridge Replacement 4PK - CCP240 |
6b | OPT-320-4PK | Cartridge Replacement 4PK - CCP320 |
6c | OPT-420-4PK | Cartridge Replacement 4PK - CCP420 |
6d | OPT-520-4PK | Cartridge Replacement 4PK - CCP520 |
7a | 170030 | Air Bleed Tube & Screen Assembly - CCP240 |
7b | 170029 | Air Bleed Tube & Screen Assembly - CCP320 |
7c | 170028 | Air Bleed Tube & Screen Assembly - CCP420 |
7d | 178583 | Air Bleed Tube & Screen Assembly - CCP520 |
8 | 170040 | Bottom Manifold |
9 | 195339 | SS Backup Ring |
10 | O-497 | Tank O-Ring |
11 | 190003 | Filter Clamp Kit |
12 | 53006300Z | .325" SS Washer |
13 | NUT-P |
Brass Sleeve Nut Assembly |
14 | 190039 | Bulkhead Baffle Assembly |
15 | O-180 | Lower Bulkhead O-Ring |
16a | 98960311 | Valve Adapter Kit - 1.5"x2" Black Bulkhead Union |
16b | 271096 | Valve Adapter Kit - 2" White |
16c | 270004 | Valve Adapter Kit - 1.5"x2" SPG |
16d | 270100 | Valve Adapter Kit - 2" Black |
17a | 170035 | Bottom Manifold |
17b | 170035 | Bottom Manifold w/Outlet Pipe Assembly |
17* | O-49 | Outlet Pipe Assembly O-Ring *Not included on Schematic |
18 | O-71 | Drain Plug O-Ring |
19 | OPT-PLG | Drain Plug w/O-Ring |
20a | 170023 | Tank Lid - CCP240 |
20b | 170024 | Tank Lid - CCP320 |
20c | 178581 | Tank Lid - CCP420 |
20d | 178582 | Tank Lid - CCP520 |
21 | 178578 | Tank Bottom |
22 |
O-409 (Post '98) O-180 (Pre '98) |
Upper Bulkhead O-Ring |

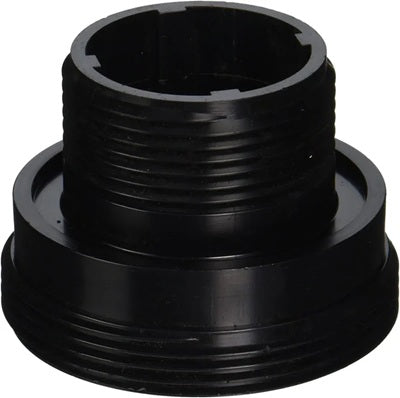

24 | 194801 | Upper Bulkhead - 2"MBT |
25 | 190106Z | Air Bleed Screen *Not featured on Schematic |
